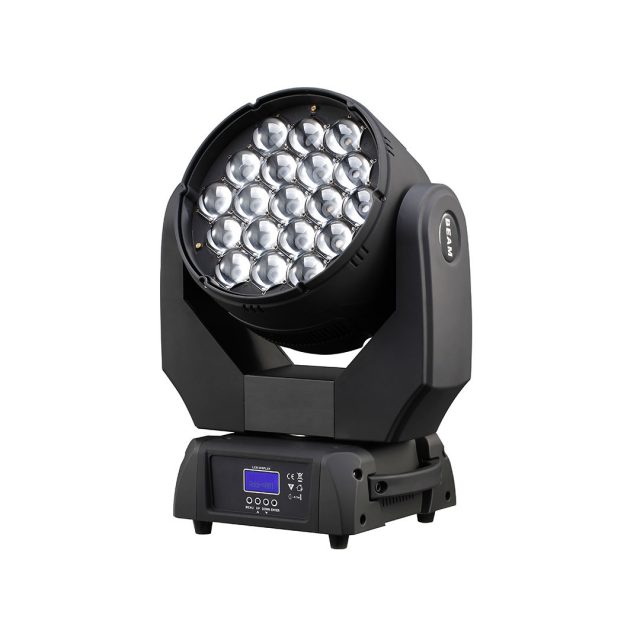

LED 19×15 zoom beam wash

Model No:

AH-R001WL

Motorized liner zoom system, zoom range: 7°~60°
Outstanding color macro effect
Dimmer: 0~100% smooth dimming
Variable strobe effects
Fast, quiet operation and flicker free

Specifications

Light Sources: 19 x 15W  4in1  RGBW LED
Beam Angle: 7°~ 60°
Power Consumption: 300W
Power Voltage: AC 100-240V, 50/60Hz
Dimension: 33*23*37 cm
Packing Dimension: 410x330x490mm
Net Weight: 10Kgs
Gross Weight: 12Kgs

Control
DMX Channel: 20/28 Channel
Control Modes: DMX,
Software Upgrade: Firmware update via DMX link
Pan/Tilt
Pan/Tilt: 540°/ 220°
Pan/Tilt Resolution: 16 bit
Construction
Display: LCD Display
Data In/Out socket: 3-pin & 5-pin XLR sockets
Power Socket: Powercon in/out
Protection Rating: IP20
